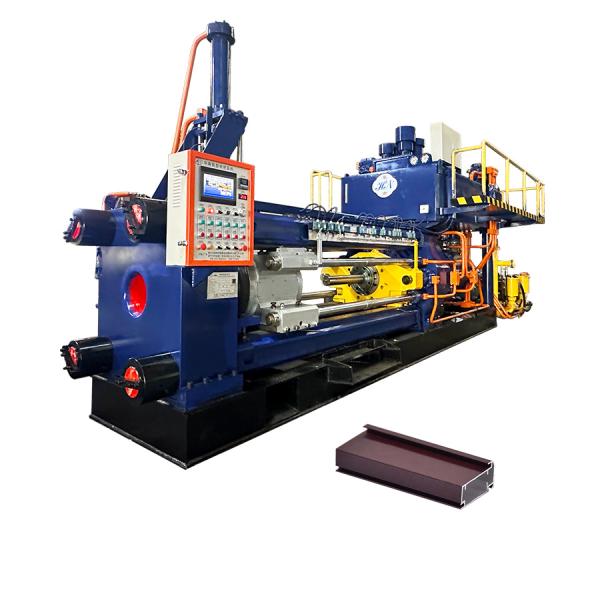

Aluminium Extrusion Press Manufacturers High Quality 1100T Extrusion Aluminium Machine
The 1100T aluminum extrusion press is a highly productive and versatile machine, offering an optimal balance between power, speed, and cost-efficiency. Designed for medium-to-large aluminum profiles, it delivers high precision and fast cycle times for industrial applications.
Product Specifications
| Attribute | Value |
| Material | Steel Forging |
| Uses | Extrusion |
| Color | Customized |
| Craft | Forging |
| Power | Electric energy |
| Size | Customizable |
| Use | Aluminum Extrusion |
| Motor | Servo or ordinary motor |
| Functional | Automatic or semi-automatic |
| Surface treatment | Heat treatment |
Technical Parameters
| Standard Billet Size: | Outer diameter: Φ127mm
Length: 400-680/750mm |
| Extrusion capacity: | Machine extrusion force: 21Mpa 1000T(1100UST) |
| Dimensions of mold base cavity: | Diameter: Φ250mm
Depth: H260mm |
| Equipment dimension: | Mechanical size: L9500mm×W3200mm×H3900mm
Overall weight: 55T
Total Power: 182.5KW |
| Motor: | Main oil pump: (Hilectro brand) HP12981-G102W-R1P4
Liquid cooling driver: Hi300-90 |
| Hydraulic pump: | Main oil pump: (Germany Rexroth) A15VSO210 variable pumps
Auxiliary pump: (Tokyo Keiki) SQP43-60-38 |
Advantages of Short-Stroke Back Loading Structure
- The extrusion stroke is notably shorter than conventional extruders, increasing stress frame rigidity by 30%
- Reduced main side cylinder volume minimizes hydraulic oil usage while enhancing speed and pressure control accuracy
- Elimination of gasket circulation system reduces reactive operation time and power consumption by 15%
- Servo motor-powered translation manipulator decreases non-extrusion time by 15%
Application Fields
Our hydraulic aluminum extrusion machine serves diverse industries including construction, industrial trade, new energy, and photovoltaic sectors. The produced aluminum profiles are used for:
- Structural components in buildings (roofing, walling, doors, windows)
- Decorative elements (panels, partitions, ceilings, railings)
- Industrial applications (storage containers, formwork, structural supports)
- Specialized uses (glass curtain walls, awnings, pedestrian bridges)
Technical Characteristics
- Mature structural design of key components ensures low failure rate
- Minimal impact and vibration with leak-resistant construction
- Fast response time and high operational efficiency
- Precision control with extrusion speed accuracy of ±0.1mm
- High automation level reduces operator requirements
Frequently Asked Questions
Q1: How is the quality of Huanan Brand machine and the service life?
Huanan Brand is recognized as one of China's premier extrusion equipment manufacturers. Customer feedback indicates a typical machine lifespan exceeding 15 years under normal operating conditions, with many well-known aluminum manufacturers among our clientele.
Q2: How to choose the right type machine?
Please provide details about your production requirements and profile sectional drawing dimensions. Our technical team will calculate and recommend the optimal machine configuration for your specific needs.
Q3: Will Huanan provide installation service?
Upon machine arrival and when installation conditions are met, we dispatch technicians to oversee installation and provide comprehensive operator training.
Q4: What is the delivery time of Huanan Machines?
- 600-1000MT: 30 days
- 1250-1800MT: 45-60 days
- 2000-3000MT: 180 days
- 3000MT+: 6-12 months
- Complete production lines: 3-10 months
Q5: What services Huanan can do for you:
Huanan provides comprehensive one-stop services including technical consultation, customized production proposals, complete manufacturing and documentation services, installation, lifetime maintenance support, and operator training.
